Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: LANWEI
  • Model Number: RO-12000L/H
  • Condition: New
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Usage: water filtration
  • Technology: reverse osmosis
  • Warranty: 1 Years
  • Specialty: automatic water softener
  • Salt Rejection Rate: 99.0%
  • Source Water: River, Spring, Lake, Bolehole, Fresh Water

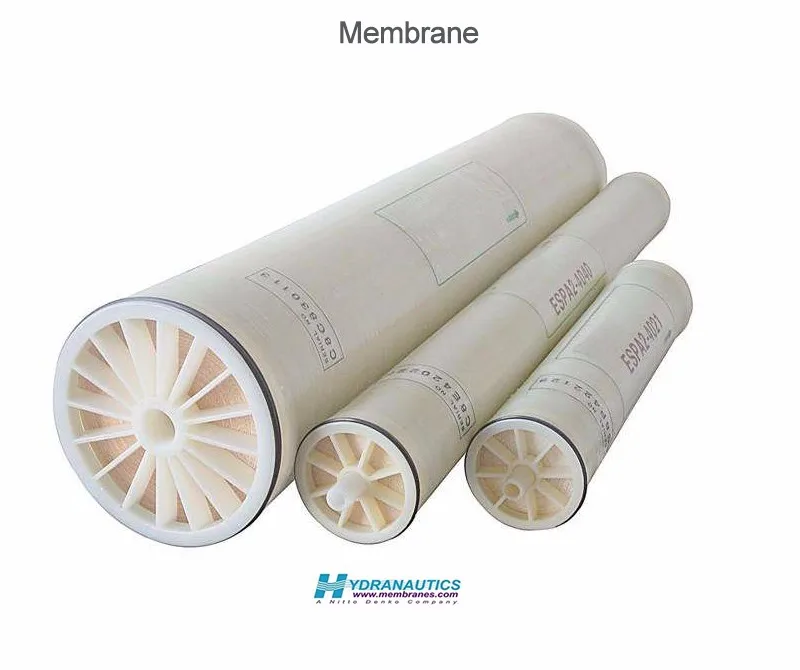

  • Membrane: USA Hydranautics
  • PLC: LG or Omron

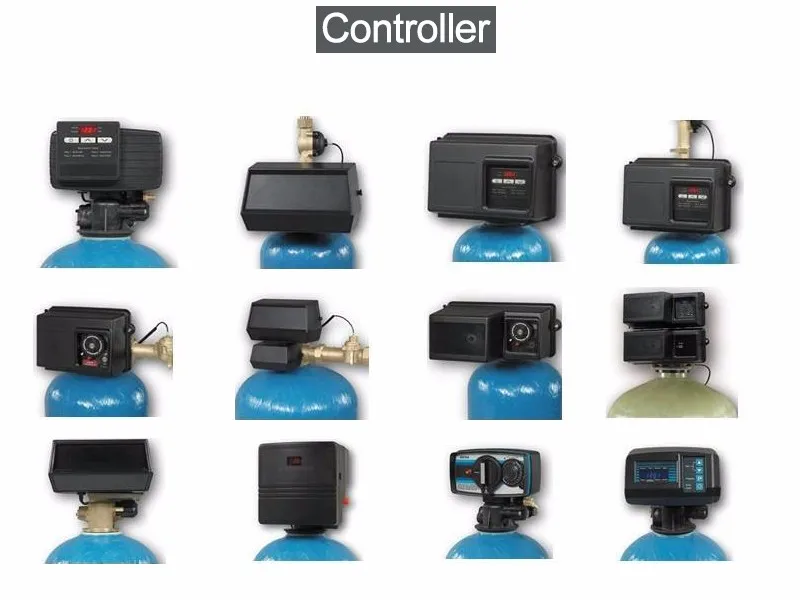

  • Controller: USA Fleck
  • Specification: stainless steel material, food grade material

Packaging & Delivery

Packaging Details: standard exportation wooden cases packing.
Delivery Detail: within 15 days after accept advance payment
Product Description
Through the reverse osmosis membrane to separate the solvent solution, the removal of small particles, organic matter, bacteria, virus, the salt removal rate can reach 99.7%, the water becomes pure water.
Specifications
1. Capacity:12T/H
2. Recovery rate>65%
3. Membrane auto wash
4. FRP pre-treat tank
5. Single grade reverse osmosis system
Main technical parameters:

Model:

RO-12000L/H

Capacity of purified water:

12000 L/H 25°C

General power:

19 KW

Electrical power:

AC 380V/50Hz 35A

RO membranes:

8040 12items USA brand

Multi-phases pump:

CDL16-160/15 KW 1 item

Pretreatment filter:

4872 FRP 2 items  3672 FRP 1 item

PP sediment membranes filter tube:

d400×1000 1 items

Booster pump:

CHL 16-40/4KW 1 item

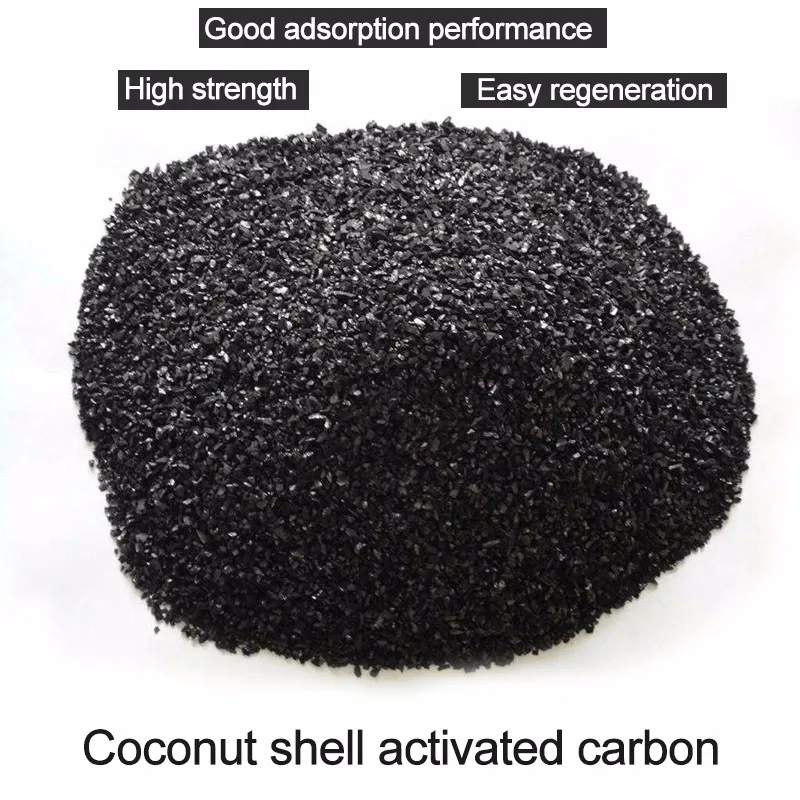

Active carbon filter:

500kg

Quartz sand filter:

1500kg

Cation:

650L

Functions of the machine:

RO membranes auto wash and manual wash

RO membranes manual wash with medicine

Pure water high water level auto stop,low water level auto start

Multi-phases pump protected without water

Protected when no power,poor power,short circuit,larger electric current,creepage of electricity

Out size of main machine:

3500×1200×1920mm

Out size of pretreatment filter:

5000×1600×1920mm

Packaging & Shipping

Our Services

1.The guarantee of our machines is at least two years, also we will send 3% of sales value as spare parts along with the machines free of charge, the parts will be enough for at least 3 years for the normal operation of machines.

2.we can train your engineers in our factory free of charge. It means you can send your engineers to our factory to study and training, we have rich experiences for the training, it is the good way to make sure that you can operate and maintain our machines successfully and for long term normal use.

3, we will offer you detail manual books for our machines, also we will make one Video CD to show you how to install and maintain the machines, the CD is the movie for the machines, it will be the great references for you to maintain the machines for the long time.

4.another way is that we can send our engineers to your factory to install the machines and train your engineers, we think it is the best way to help you operate and maintain the machines. We have been doing the install jobs for our overseas customers for many years.

In this way you need to pay for the travel costs for our engineers, because our initial quotes don’t include the travel costs.

5. All of the electrical parts in our machines are CE or TUV approved.

We can offer you UL or CUL/CSA approved parts if you need for the North American markets.

The good electrical parts are the guarantee for the good quality for our machines.

Company Information

 DongGuan LANWEI Industry Co.,Ltd is a combined group company located in Dongguan city, co-operating with dozens of manufacturers, we have more than 15years experiences on beverage/water machinery and plastic machines.

We devote ourselves to the development, research and production of plastic machine and liquid food and beverage packing andfilling industry and automatic blow molding machine in China.

Our Main products including: Mineral water and purified water producing line. Carbonated beverage producing line. 3 gallons & 5gallons producing line (5-10L bottle & 20L bottle). Flat and tube UHT device, and CIP system. All the products are sold well in every province and city of the whole country and also exported to about twenty countries and areas with strong technical capability, advanced equipment, scientific management system and perfect after-sales service.

Our Main Products Are:

1000-15000bph water productione line

1000-15000bph juice production complete line

1000-15000bph carbonated drink production line

1000-15000bph wine bottling line

1000-9000tin cans/hr

5gallon bottle filling line

Stand alone machines also available

Welcome Customers Visit Our Company.

FAQ

 Service:

What Services can we LANWEI company Supply?

1. Turnkey Plant for the Bottled Water Filling Line both for Small PET Bottle (0.25L-2.5L ) and Gal Bottle (3L-6Gal)

Layout design / related machine supply / Installation & training / Raw Material (Label /caps / etc Logo Design)

2. Reverse Osmosis / Ultrafiltration Water Purification System for Domestic & Industry use (Max Cap: 200Ton/h)

ODM water purification design according to the client’s raw water report then can 100% ensure to meet your demand

3. Monobloc Filling Machine for Gallon / PET Bottle

Conveyor system /inlet start wheel / caps screwing gear ODM design according to clients bottle/caps samples

Delivery time:
25-30 working days upon deposit and approval to the bottle drawing.
Payment:
For machine:30%T/T deposit within five days after the contract is signed against invoice of the seller. The balance of 70%T/T will be paid before shipment.
Guarantee:
We response for one year warranty for the machine, however, it without any human conduct. And provide one-year free spare part for client.  And sendengineer to client's company, help install the machine, teaching their staff operate the machine and also, we do have a private school which help our client sending their staff tochina, help them training.
After sales service:
The buyer pays travel expenses; hotels, airfares, meals and ground transportation and any other expenses related to installation and training at customers facility.
